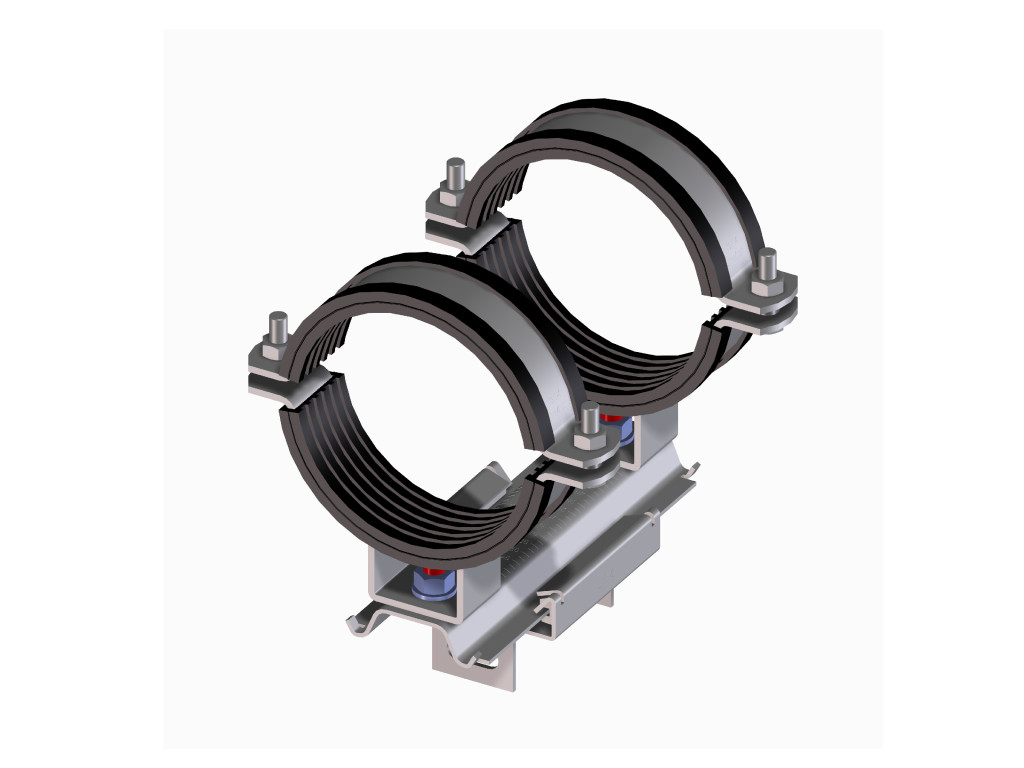

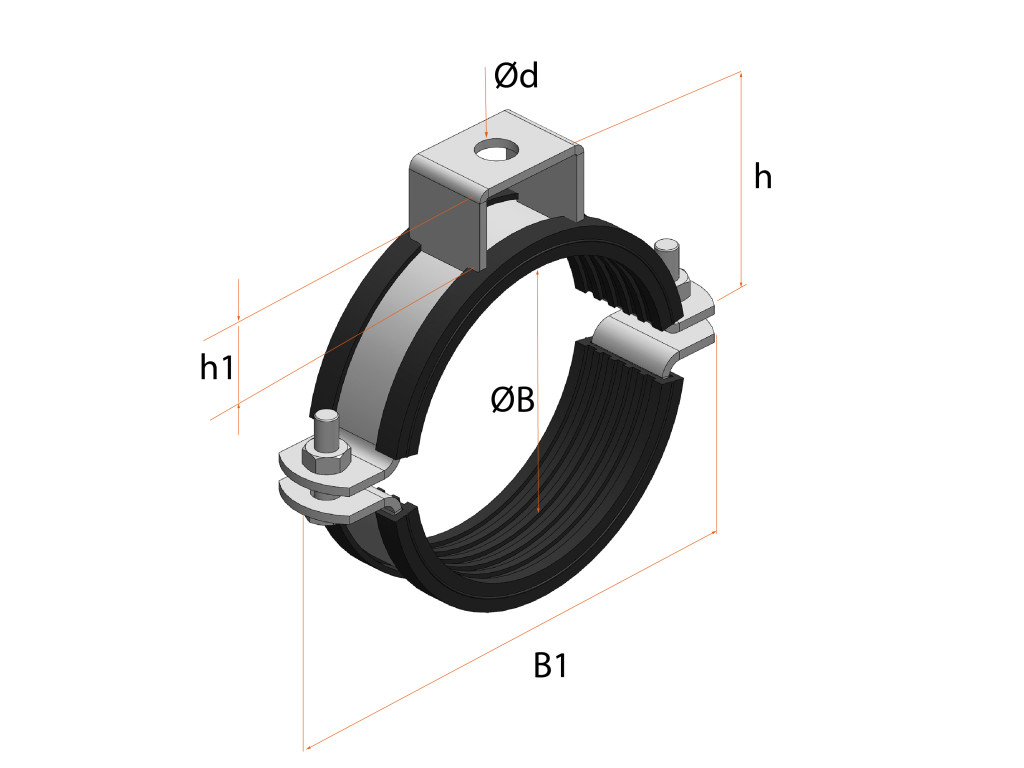

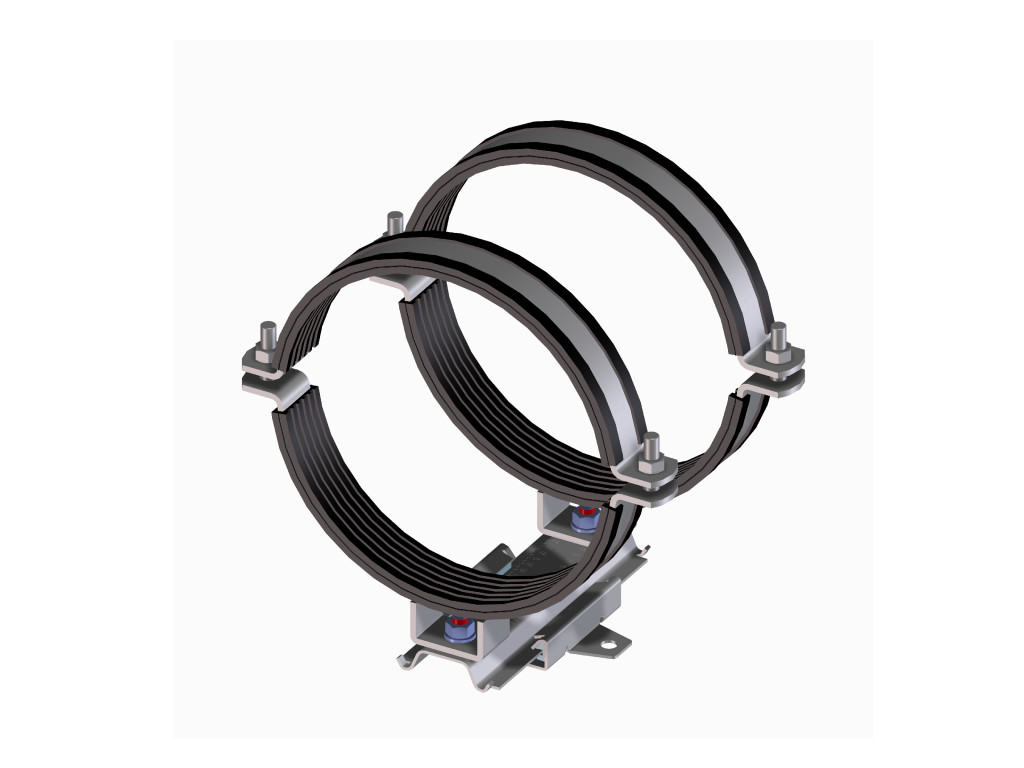

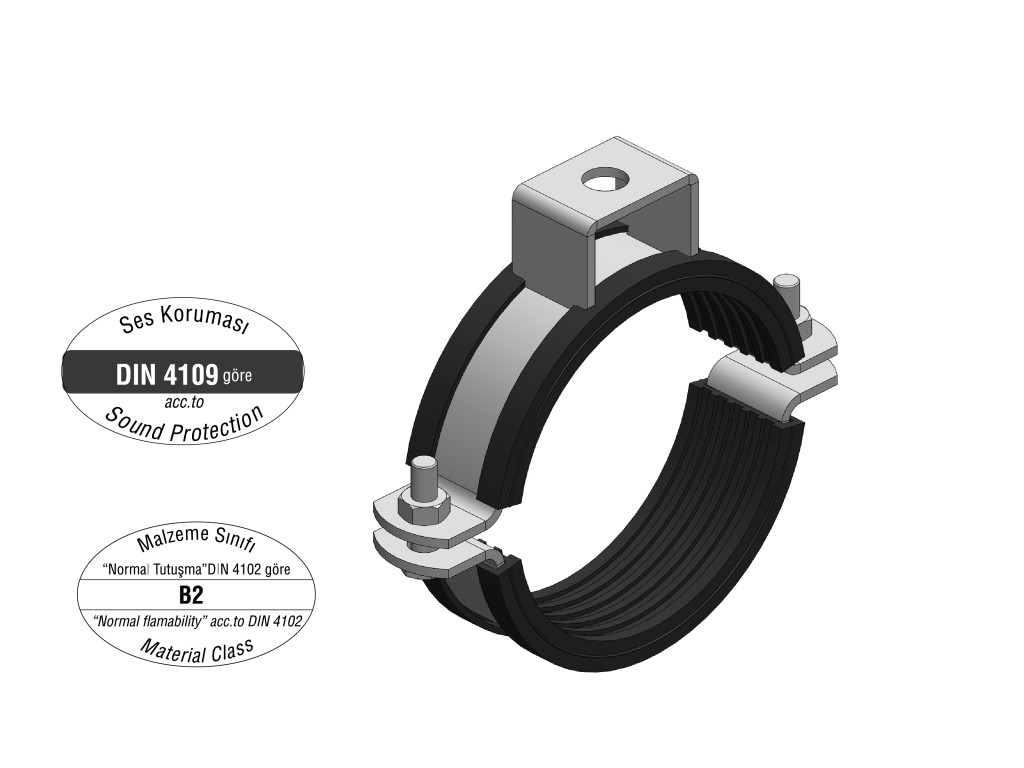

SDNA Heavy Duty Pipe Clamp

Designed for suspending and fixing of vertical and horizontal pipes. “U” part is connected to the profile with the help of the bolt and allows the height adjustment.

Available formats ZIP
Explore product information
Files
1
Downloads
169
Last updated
06.10.2023

Product overview

Product Description

Designed for suspending and fixing of vertical and horizontal pipes. “U” part is connected to the profile with the help of the bolt and allows the height adjustment.

Project documentation

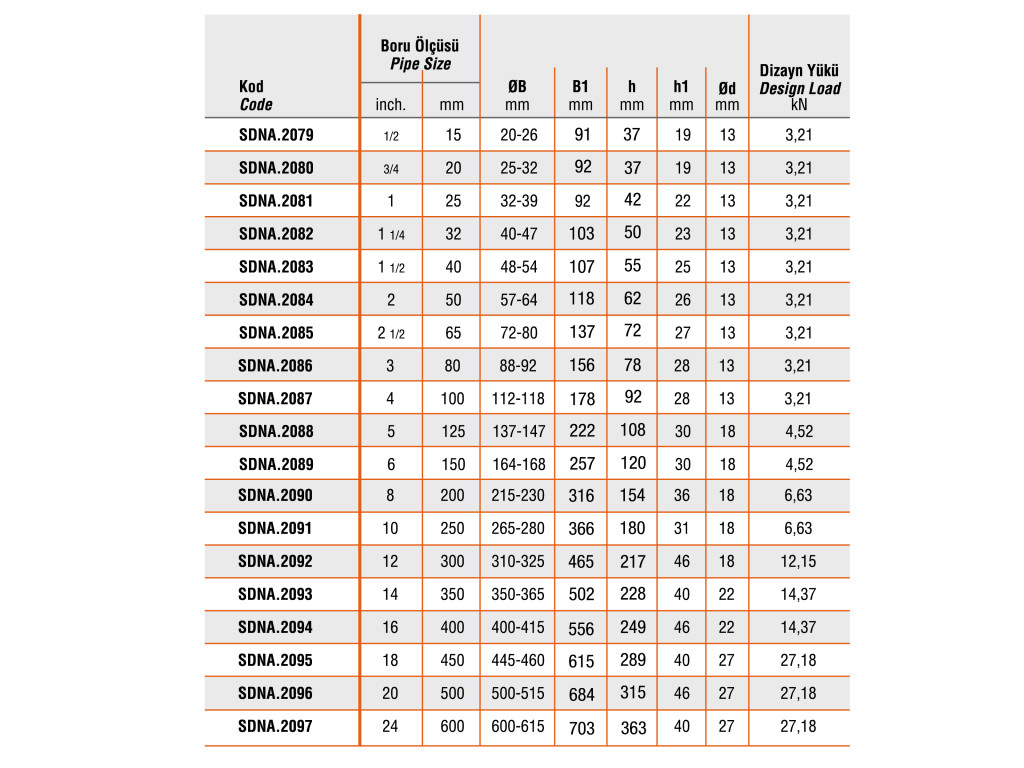

Specification

Malzeme ve Tipi: Çelik S235 JR

 Coating: EN 1461 Hot-dip Galvanized

 Isolation Rubber Technical Specification : Material: EPDM, Temperature Resistance : -30 ˚C to + 110 ˚C

Structured product data

Technical Specifications

Core product properties for design, modeling, and specification workflows.

Product reference
LINK_SDNA_01
Category
Hanging Systems
Object Type
Building Material
Main Material
Steel
Country of manufacture
Turkey
Country of design
Turkey
Last updated
06.10.2023
Auxiliary Material
Hot-dip Galvanized

SDNA Heavy Duty Pipe Clamp

1 files · 169 downloads
