AccuSine - Active Power Quality Solutions

AccuSine PCS+: Active power correction solution for applications requiring harmonic mitigation, power factor correction and load balancing. Modular, robust and high performance design to address the most demanding applications to help stabilize the electrical network for increased uptime and reduce CAPEX and OPEX. AccuSine PCSn: Active power correction solution for applications requiring harmonic mitigation, power factor correction and load balancing. Specifically designed for applications requiring neutral harmonic compensation, this modular, robust and high performance active harmonic filter is suited to commercial and buildings type non-linear loads to help stabilize the electrical network for increased uptime and reduce CAPEX and OPEX. AccuSine PFV+: Active power correction solution for applications requiring ultra fast, stepless power factor correction, flicker mitigation, volt-var support and load balancing. Modular, robust and high performance design to address the most demanding applications to help stabilize the electrical network for increased uptime and reduce CAPEX and OPEX.

AccuSine PCS+:

* Standards: cUL, CE, ABS, DNV-GL, CNAS, RCM, EAC, RoHS, IBC

* Rated RMS current: 60, 120, 200, 300A

* Rated voltage: 208 - 690Vac

* Nominal frequency: 50/60Hz +/- 3Hz

* Ingress Protection: IP00, IP20, IP31, IP54, UL Type 1, UL Type 2, UL Type 12

* Modularity: Upto 10 units in parallel of any rating combination

* 3-level IGBT technology

* Spectrum cancellation: 2nd to 51st order, fully selectable

* Filtering degree: THDi < 3%, closed loop control, max 20:1 THDi reduction

* Thermal: forced ventilation with separate airflow, back channel cooling

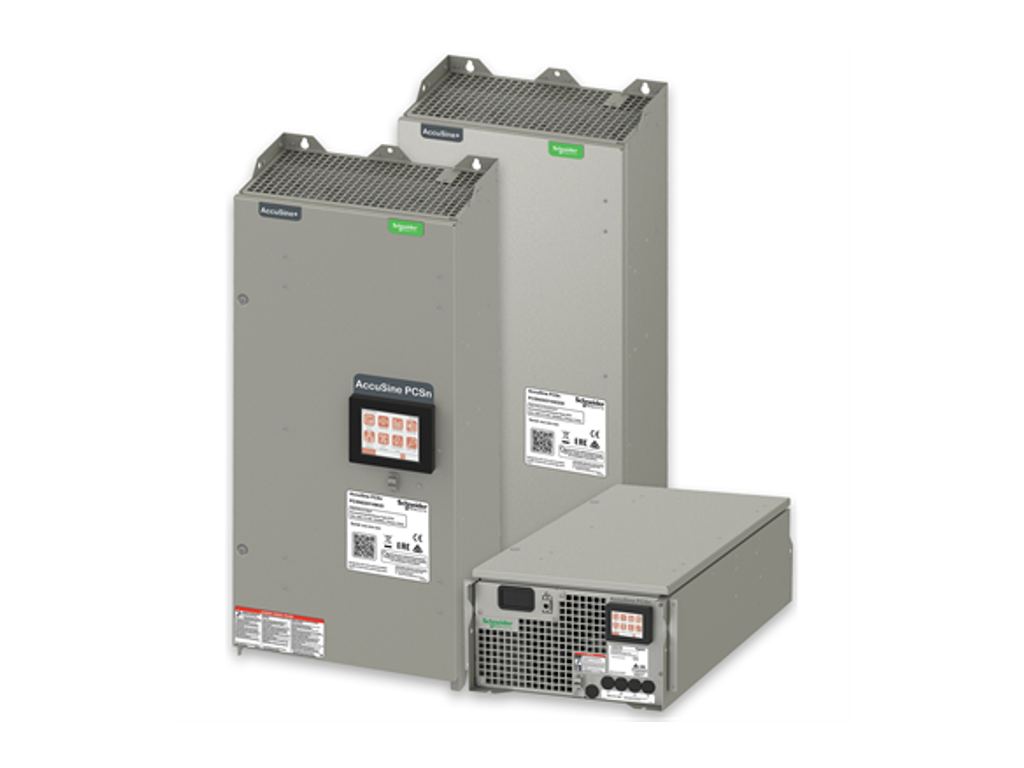

AccuSine PCSn:

* Standards: CE, ABS, RCM, EAC, RoHS, IBC

* Rated RMS current: 20, 30, 50, 60

* Rated voltage: 208 - 415Vac

* Nominal frequency: 50/60Hz +/- 3Hz

* Ingress Protection: IP00, IP20

* Modularity: Upto 12 units in parallel of any rating combination

* Mounting: chassis, wall and 19” rack mount modules

* 3-level IGBT technology

* Spectrum cancellation: 2nd to 51st order, fully selectable

* Filtering degree: THDi < 3%, closed loop control, max 20:1 THDi reduction

-  Thermal: forced ventilation with back channel cooling

AccuSine PFV+:

* Standards: cUL, CE, ABS, DNV-GL, CNAS, RCM, EAC, RoHS, IBC

* Rated RMS current: 60, 120, 200, 300A

* Rated power: 21 - 250kvar

* Rated voltage: 208 - 690Vac

* Nominal frequency: 50/60Hz +/- 3Hz

* Ingress Protection: IP00, IP20, IP31, IP54, UL Type 1, UL Type 2, UL Type 12

* Modularity: Upto 10 units in parallel of any rating combination

* 3-level IGBT technology

* Reactive correction time: 0.25 cycle

* Thermal: forced ventilation with separate airflow, back channel cooling
